Values in perfect balance
Available configurations and sizes
Work areas up to
236" x 79"
Fiber Laser power
3 to 12
kW
Simultaneous axis speed
7716
ipm

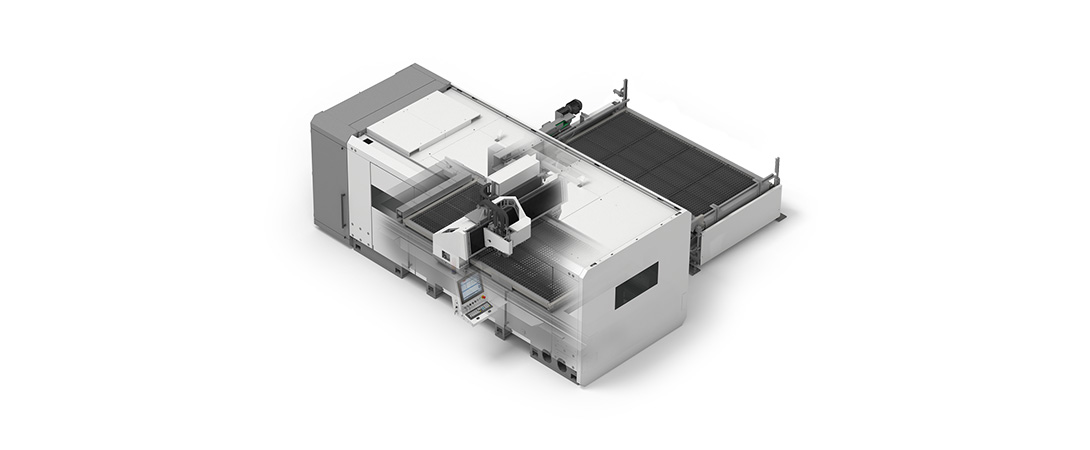

Top-notch laser cutting performance
High axes speeds and acceleration paired with a rigid mechanical structure to achieve excellent cutting performance and accuracy.

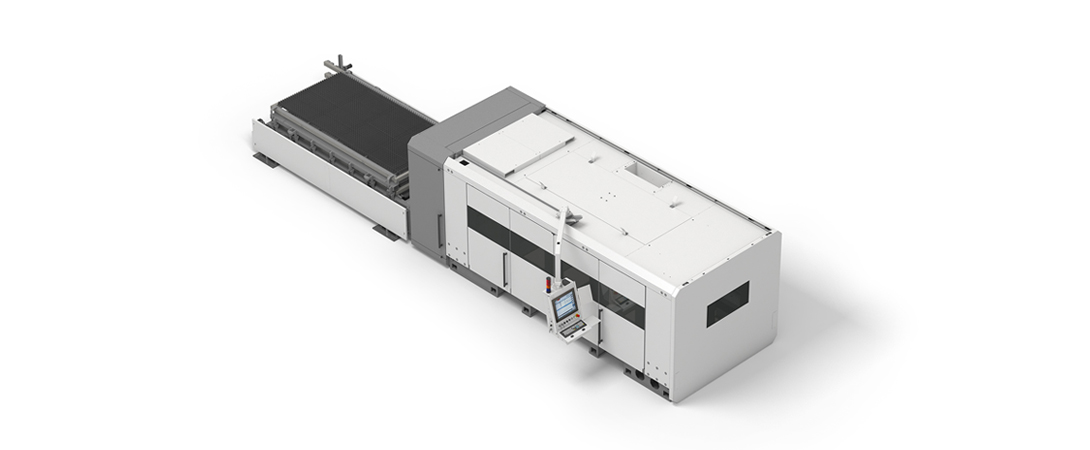

Transverse or longitudinal sheet metal pallet changer
Choose the pallet changer configuration according to your floor space and production flow requirements.
LS5 is also available in longitudinal configuration with all pallet changer size options.
Free to choose
Ergonomics: value you will appreciate day after day.
Whenever you want to check production, the large front door openings allow convenient access to the entire working area.

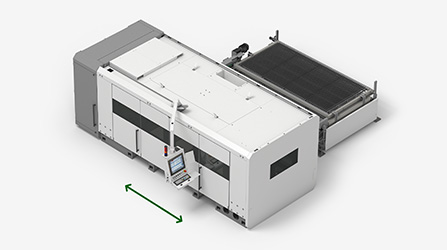

Place the operator console in the position you prefer. The operator panel can be swiveled and moved along the front side of the machine for optimal viewing of the cutting process in all conditions.

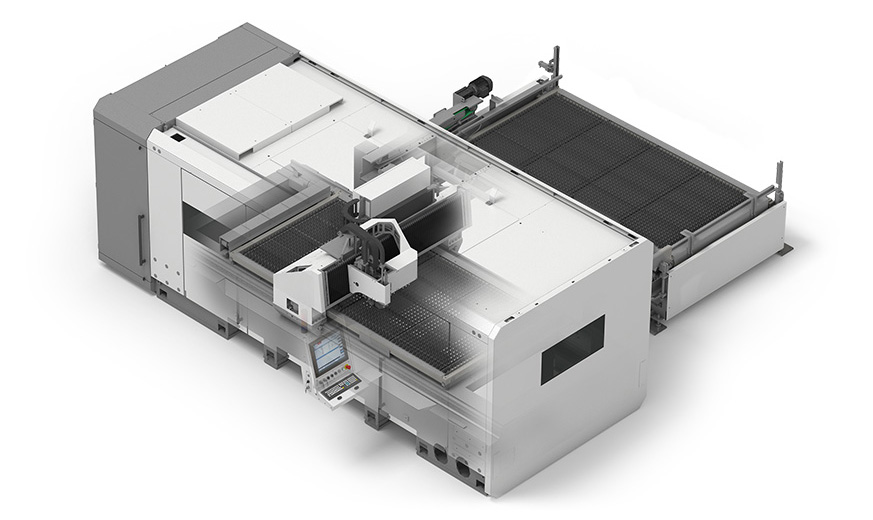

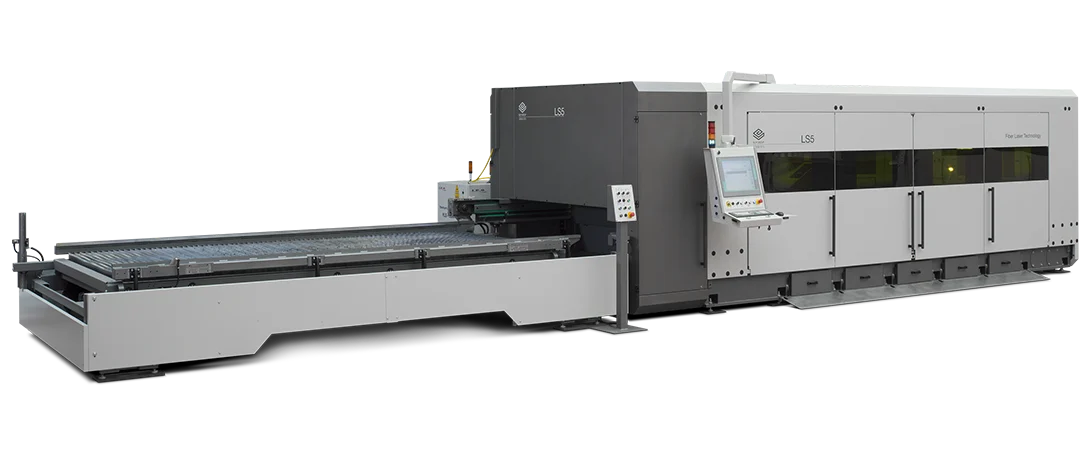

LS5
Born to break its own records.
As your production expands, the system can be integrated with an automatic sheet loading system and pallet changer for unloading processed parts. For material type and thickness changeovers, add an automated storage tower, with one or two towers.

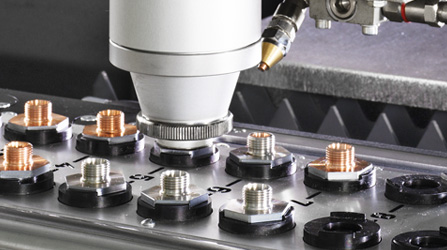

Perfect nozzles? With LS5, it becomes automatic.
Work in unmanned mode without worrying about quality. The machine changes the nozzle, keeps it clean, and checks wear, all automatically.

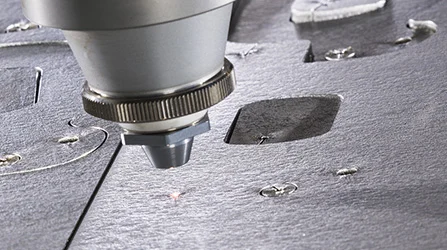

Nitrogen or oxygen? With compressed air, you have the best of both worlds.
If you need to cut mild steel up to .47" (12 mm) thick or aluminum up to 4.72" (15 mm) thick, with high-pressure compressed air assisted cutting, you get the same productivity you would with nitrogen at a fraction of the cost and the parts are ready for your next operation.

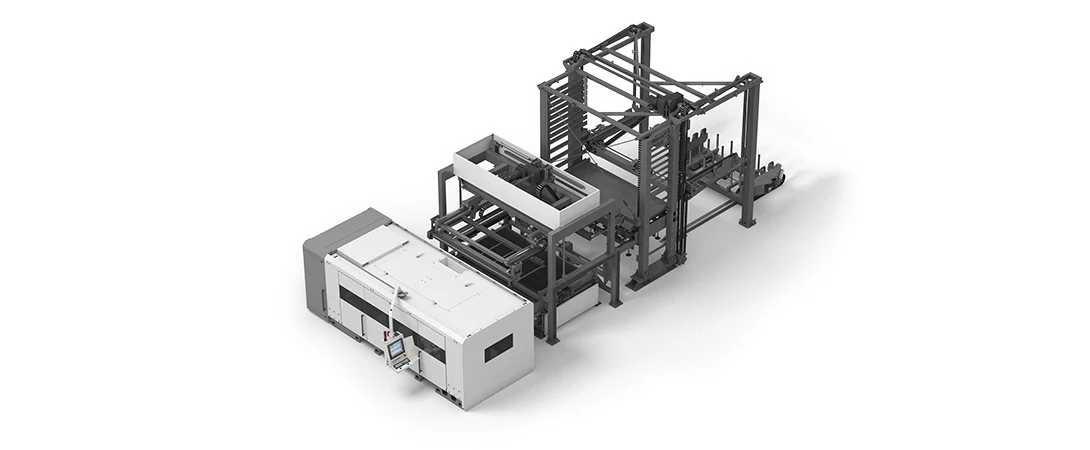

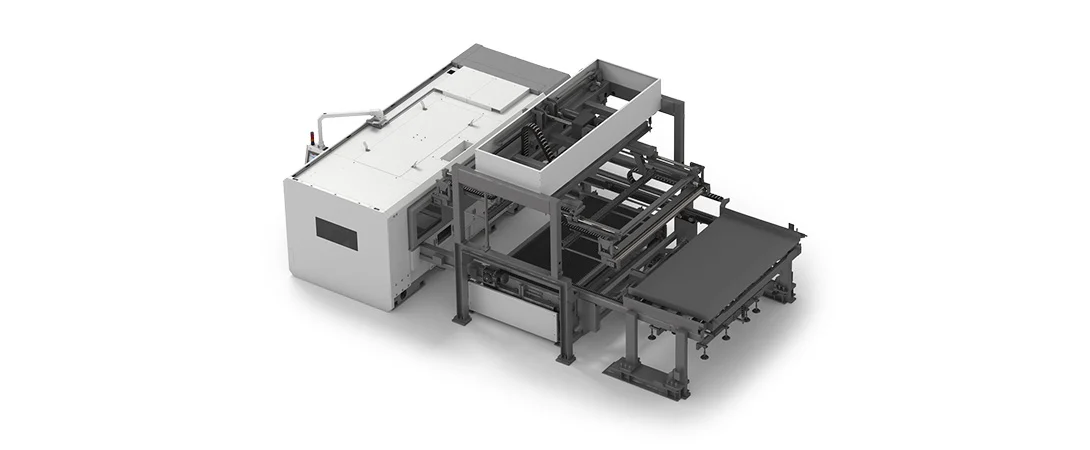

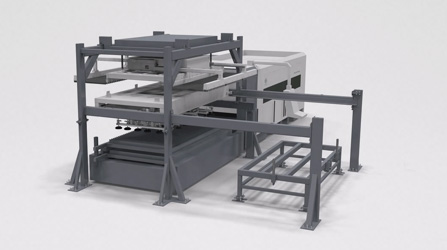

Automatic loading and unloading.
Intensive, automatic, safe and unmanned processing. With the sheet loading and unloading system, you have faster cycle times and high productivity.

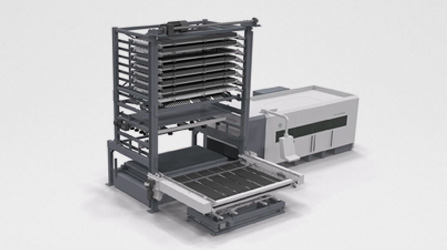

Pallet storage.
Choose the compactness and ease of use of the automatic sheet metal sorting warehouse with one or two towers for 24/7 unmanned production.

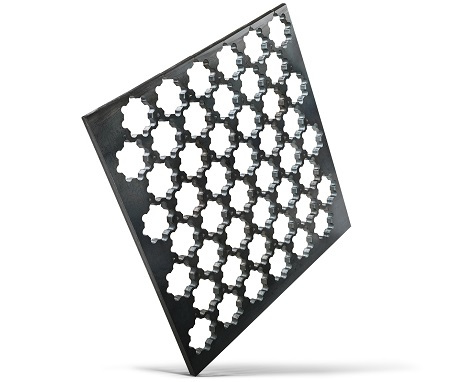

Active Tools: productivity, safety, quality, automation and ease of use.
Always perfectly adapted working parameters so you can get optimal results in less time, regardless of operator experience.
This function is used to obtain high cutting quality faster even on the most critical cut features by recognizing the geometries and automatically optimizing cutting parameters.
This function assists the operator in centering the nozzle, simplifying and speeding up work considerably as a result.
This function allows you to utilize residual pieces of sheet metal in an easy, fast, and user-friendly method using an innovative viewing system.
Choose the safety for your job
Work safely and confidently: LS5 is a CE marked Class 1 system.
Maximum gain in speed, precision and efficiency.
LS5 Technical Information
Performance
Max. XY speed
7716 ipm (196 m/min)
Accuracy
±.002'' (0.05 mm)
Repeatability
± .001'' (0.03 mm)
Working capacity
Machinable materials
Mild steel, stainless steel, aluminum, copper, brass
Sheet dimensions
118'' x 59'' (3,000 x 1,500 mm)
157'' x 79'' (4,000 x 2,000 mm)
236'' x 79'' (6,000 x 2,000 mm)
157'' x 79'' (4,000 x 2,000 mm)
236'' x 79'' (6,000 x 2,000 mm)

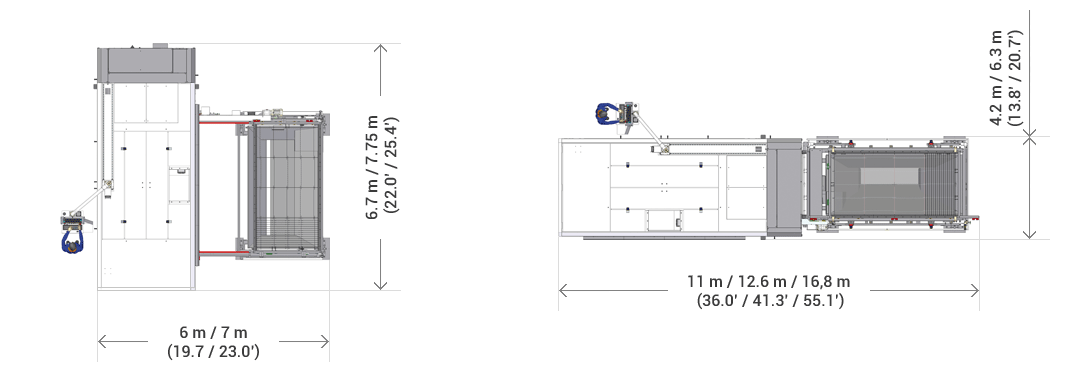

Dimensions
Transversal configuration dimensions
Short side: 19.7' or 23.0' (6 or 7 m)
Long side: 22.0' or 25.4' (6.7 or 7.75 m)
Long side: 22.0' or 25.4' (6.7 or 7.75 m)
Longitudinal configuration dimensions
Short side: 13.8' or 20.7' (4.2 or 6.3 m)
Long side: 36.0' or 41.3' or 55.1' (11 or 12.6 or 16.8 m)
Long side: 36.0' or 41.3' or 55.1' (11 or 12.6 or 16.8 m)

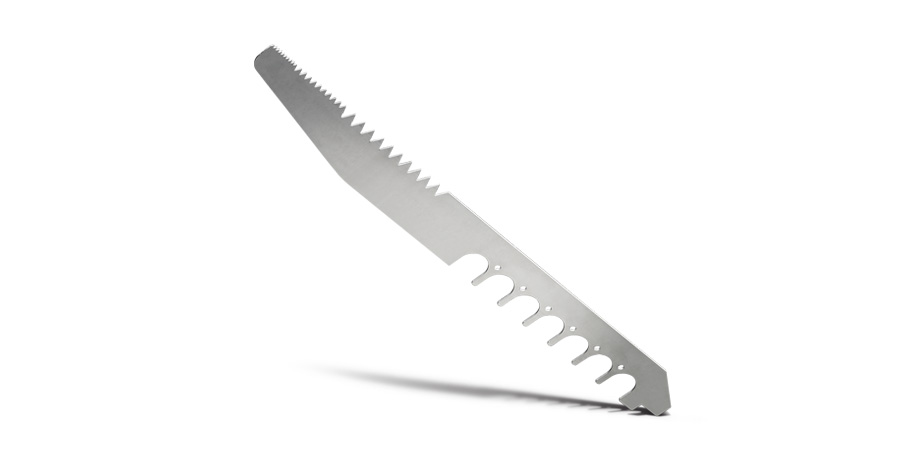

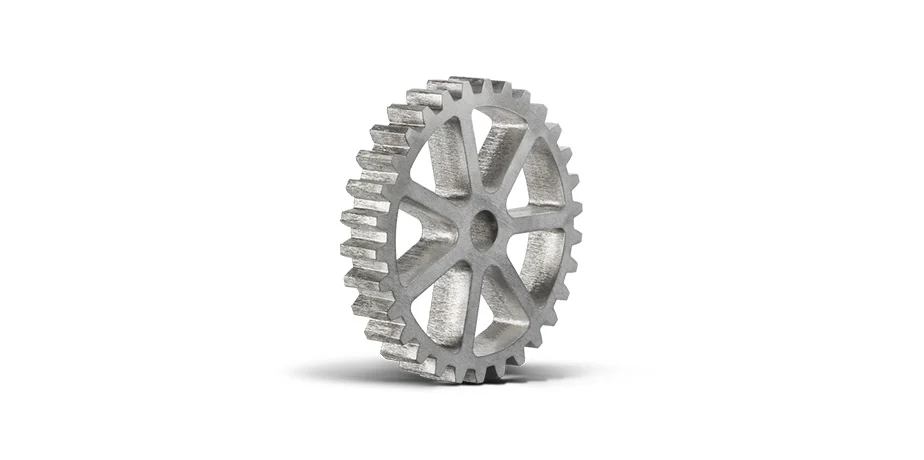

Expand your business opportunities.
The versatility of LS5 allows you to create new applications or improve existing ones.

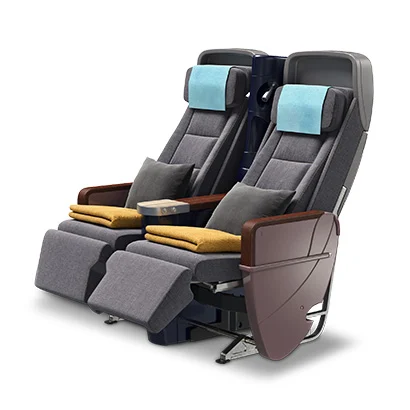

Aerospace

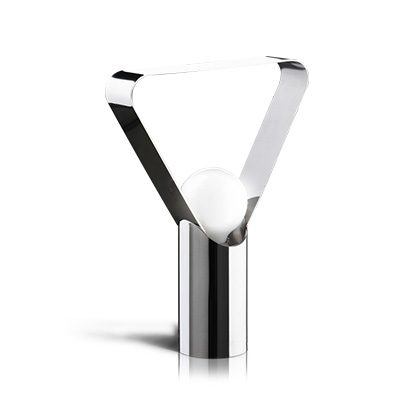

Furniture
Furniture

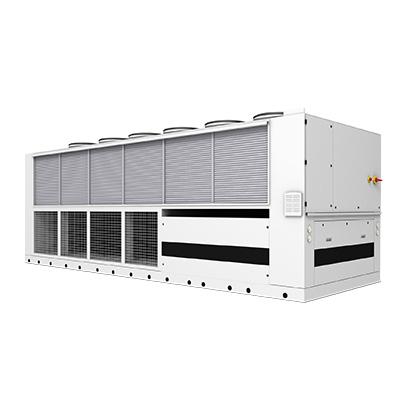

HVAC

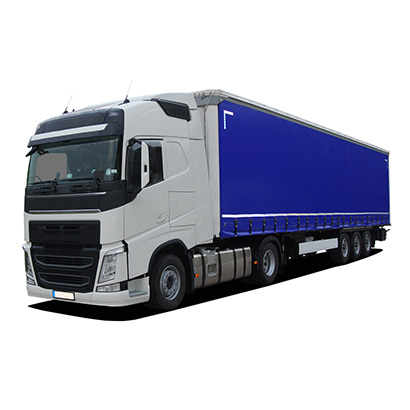

Industrial Vehicles

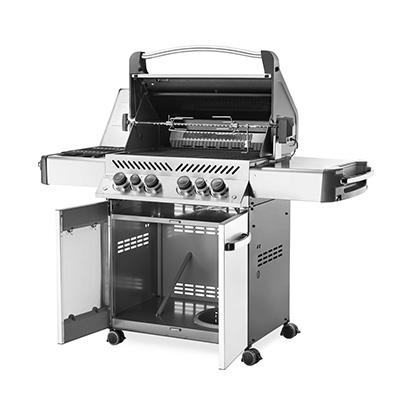

Home Appliance
Contractors
A laser machine with an extra something
Up to 20% faster in nitrogen cutting of thin stainless steel and mild steel using technologies integrated into the fiber laser-cutting system.

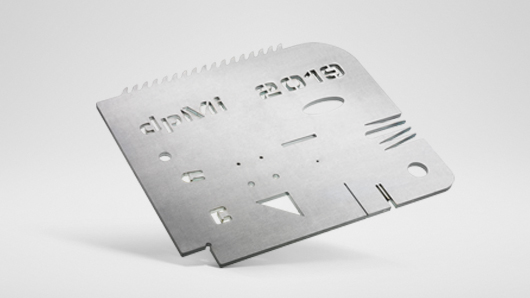

High-definition laser-cutting

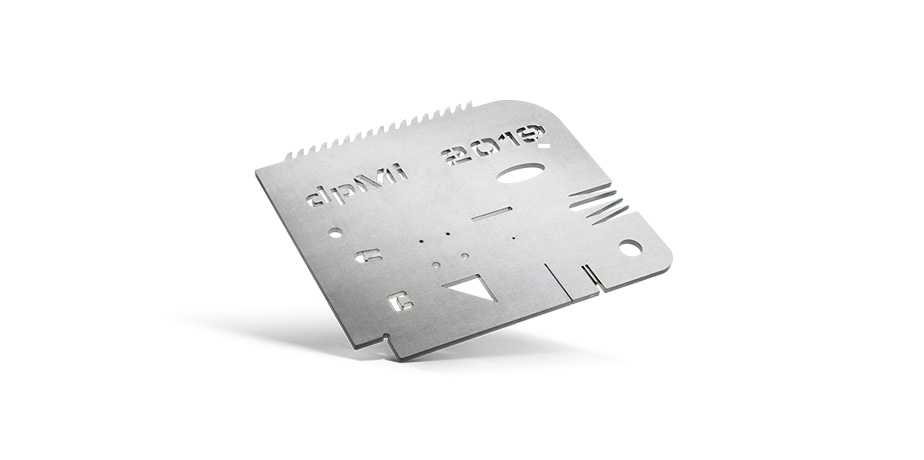

Make flawless pieces without burn marks even under the most demanding geometric conditions, including holes with a diameter smaller than the thickness and thin, sharp geometries.

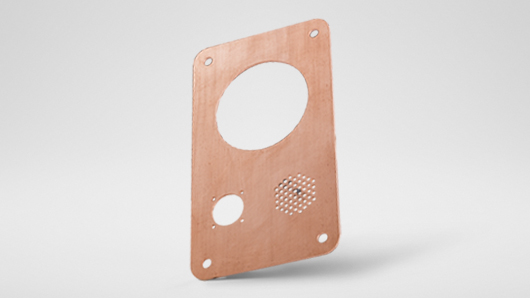

From stainless steel to copper - cut any metal
There are no limits to what you can do. The LS7 fiber laser source allows you to process aluminum, copper, brass, stainless steel and mild steel.

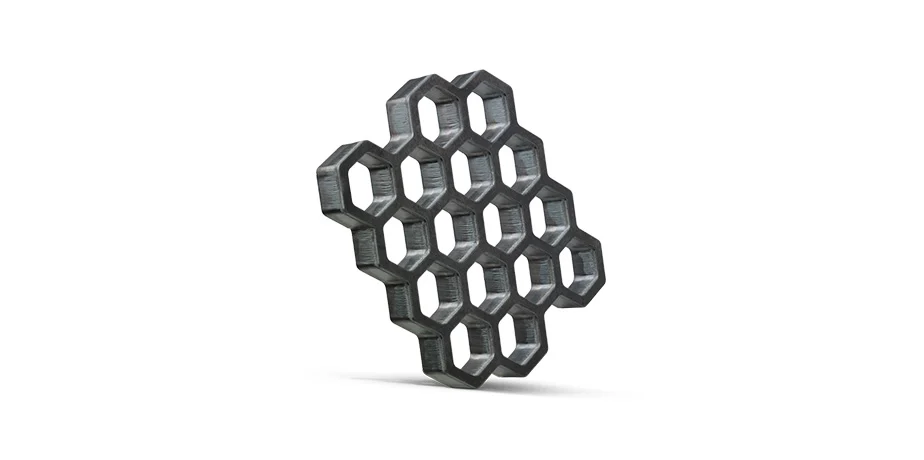

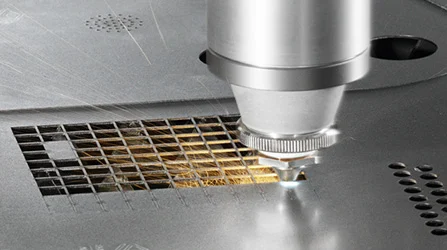

Cut your grids in a flash
Save up to 70% of time for laser-cutting grids by equipping your laser machine with Fly Cut.
Discover the potential of 2D laser-cutting
