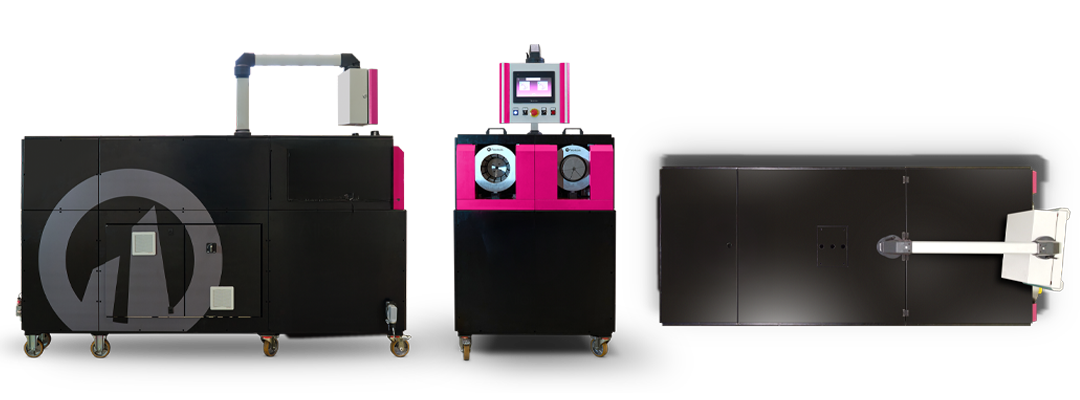

Swaging Machine AT150EM

Swaging Machine

AT150EM

The AT150EM End Forming Machine is a highly precise 2-head machine that allows for swaging, flaring, and calibration operations on metal tubes with diameters from Ø30 mm up to Ø150 mm.

MAIN FEATURES

Maximum workable length 150 mm, radial reduction or expansion up to 5 mm, and minimum thickness 2 mm;
Made up of an electro welded steel structure with wheels to facilitate moving inside the company;
7.5 kW motor that allows for optimal absorption during processing. The power is regulated to maximize energy efficiency without compromising performance;
Electrical system with brushless motor with absolute encoder that guarantees a precision of ± 0.05 mm;
Intuitive HMI Touch Screen panel, which allows easy configuration of the type of processing to be performed, making the operation simple and fast;
Programmable Pneumatic Rotation that allows the rotary option for both tools (expansion and reduction) during the work cycle.
