20001 Transfer machine for shoe metal tips
The composition of the line provides in the first position a 2 t decoiler and immediately after it there si a pneumatic feeder which supplies the material to the 100 t press, where both the actual drawing uint and the cutting-off, trimming and flanging units are housed.
Technical data
| Decoiler capacity: | 2 t |
|---|---|
| Press force: | 100 t |
| Production capacity: | 15 tips/min |
Machine configuration
It is a motorized decoiler (or idle on request) with the capacity of 2 tons. Complete with hydraulic power pack and independent electric plant. Hydraulic unit for the spindle regulation, an electric plant for the automatic / manual mode and for the speed regulation. Complete with loop, arm for the loop control, and spokes to maintain the strip in the correct position.
Technical data
| Decoiler capacity | 2 | ton |
|---|---|---|
| Shaft diameter (min/max) | 470/530 | mm |
| Coils maximum external diameter | 1800 | mm |
| Motorized AC decoiler with inverter | 1,5 | kW |
Die-holder for trimming, separation and flanging with blank holder below.
Kit for cutting-off, trimming and flanging
The whole electric installation is intended here. Electric cabinet, cable channels, control desk and software for the management of the line parameters, all according to the highest standards of quality and efficiency.

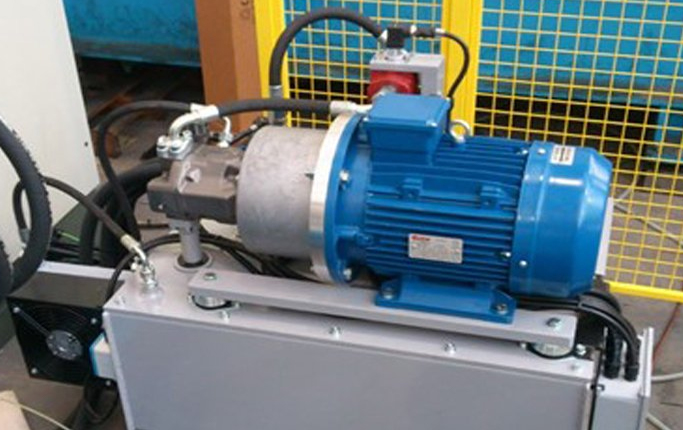

L'impianto idraulico è necessario nelle operazioni di taglio e nelle unità idrauliche di punzonatura o scantonatura. È composto dalla centralina (di potenza tale da soddisfare tutte le lavorazioni), dai collegamenti meccanici (tubature e valvole) e dal software di controllo e gestione.
Series of wire mesh, infrared photocells and sensors for the protection of the operators. They are installed on the line to avoid any accident that could cause physical damages to the operators
