TS72
Integrated cutting lines

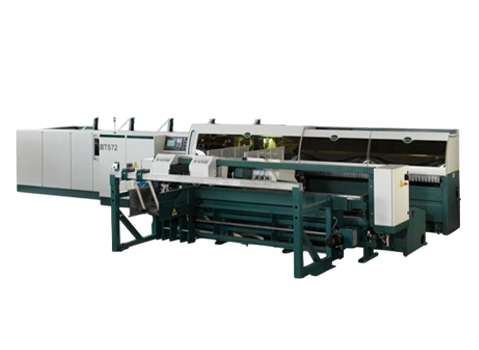

TS72
cut of tubes Ø (8) 12 - 102 mm
automatic set-up
maximum cut part length 4500 mm
optional de-burring, length measuring, washing and collecting/ palletizing

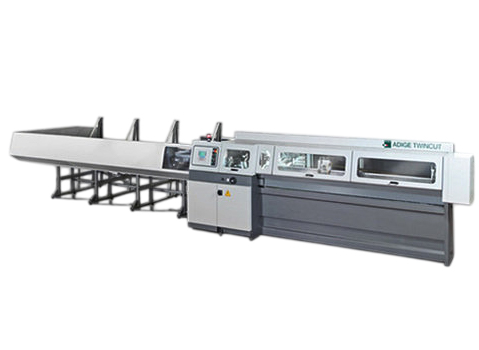

TWINCUT
cut of tubes Ø (8) 12 - 80 mm - 2 x 45 mm
semiautomatic set-up
maximum cut part length 6090 mm
optional de-burring, washing and collecting
Short length cutting

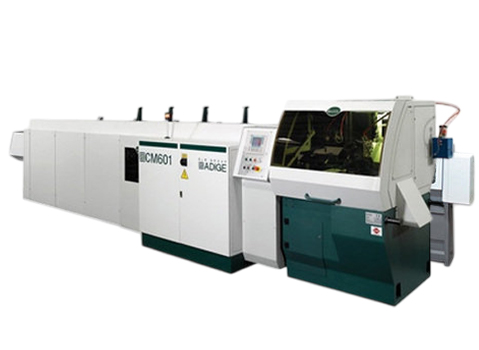

CM601
cut of tubes and full material bars Ø 12 - 102 mm
semiautomatic set-up
maximum cut part length 400 mm (1500 mm optional)
optional version double-cut (tube / bar)
Cutting and Endmachining

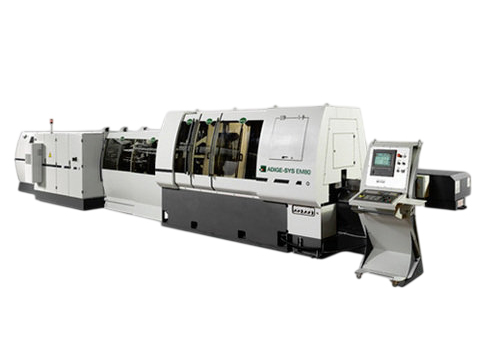

EM80
cutting and machining centre
(cutting, chamfering, turning, threading).
for tubes and full material bars Ø 10 - 76 (80) mm
semiautomatic set-up with CN-control
optional integrated length measuring

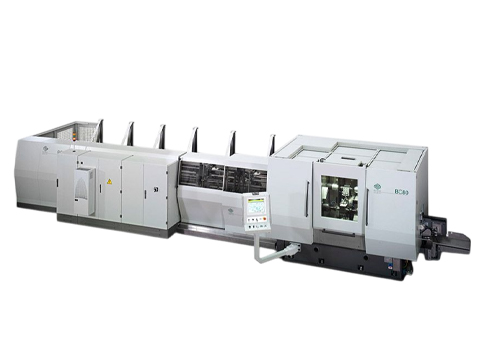

BC80
cutting and chamfering
for tubes and full material bars Ø 10 - 80 mm
maximum cut part length 350 mm
optional integrated length measuring
The complete cutting lines for tubes manufactured by Adige are the result of 50 years of experience in the field of tube processing. All tube sawing machines are equipped with automatic loading and unloading systems as well as with optional deburring, washing, measuring and collecting systems. They are suitable for cutting tubes, solid bars and profiles in iron, steel, aluminium, brass and copper. All tube cutting machines are designed to run unattended throughout the following phases: bundle loading and feeding, cutting, brushing and deburring, in-line measuring, washing, drying and collecting. Disk cutting of tubes, bars and profiles offers advantages in terms of quality, processing and technology compared to other technologies (e.g.: belt saws), and particularly: higher accuracy and cutting repeatability, higher orthogonality and better surface finishing quality, high productivity, reduced bar swarfs.
