Air Filtration System

M/s. LOSMA S.P.A, ITALY In INDIA for salse and service support of Air filtration systems for oil mists, smoke and dusts.
Losma is a group started in 1974 to offer industries and manufacturing companies the opportunity to "work clean and breathe healthy". In industrial production, the treatment of air and of liquid lubricants and coolants is the most essential requirment to work clean and breathe healthily. M/S. Tech Mach Machine Tools Bangalore are pleased to introduce these machines to the India market as supplier agency. M/s. Tech Mach Machine Tools Bangalore are dealers and suppliers of reputed Air Filters.

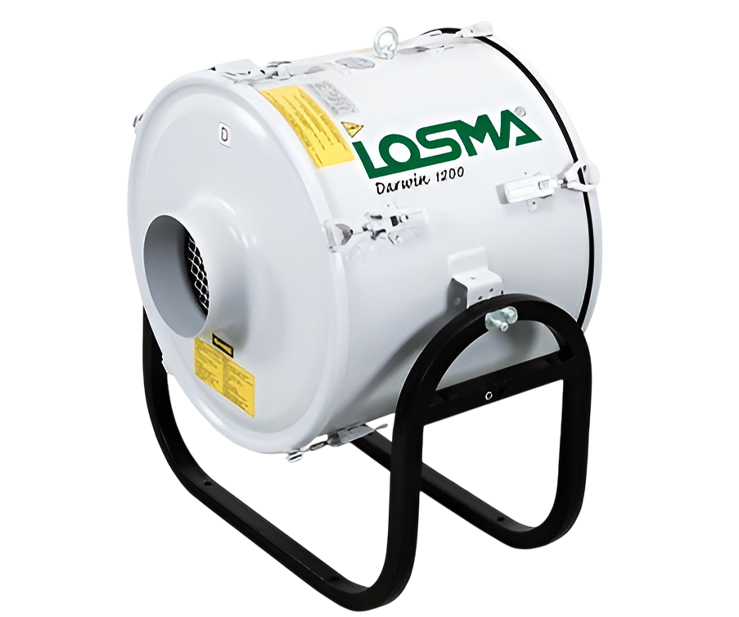

Darwin

Air Filters

DRAWIN-AIR FILTRATION

DARWIN series is a range of centrifugal filters for cleaning air containing oil mists, micro-mists and smokes produced when using coolants (emulsion or neat oil). It can be used with a majority of machine tools for all machining processes. It is available in 4 sizes with three different filtration interchangeable technologies. Throughputs available are from 600 to 3.000 m3/h, with different combination for increasing filtration efficiency, up to 99,97%. It's avalaible in the follow setup:

MONO CENTRIFUGE

Suitable for all machining processes (emulsion or neat oil).

DOUBLE CENTRIFUGE

Suitable for all machining processes (emulsion or neat oil) in particular for those demanding conditions such as the use of high pressure coolant, generating micro-mists and vapor’s.

TURBINE

Suitable for the machining of superficial removal (sharpeners, grinders, honing, lapping and all similar finishing processes) also with the presence of heavy particulates. CharacteristicsOptionalsDownloads

Working principles

  • Polluted air is drawn into the system thanks to the depression generated from the rotation of the centrifuge, which gives the air a swirling movement.
  • Air passes through the special expanded polyurethane foam inserts positioned in the centrifuge (only in mono and double version) and then into a net. The combination of all these elements facilitates the re-coalescing of oil particles – including the finer ones.
  • Air crosses a further static filtration layer before being re-introduced into the working environment. The re-condensed liquid is eliminated through the drainage tube in constant positive pressure.
  • Darwin series grants a filtration efficiency of over 95%, also for pollutant particles below one micron; this efficiency rate can be increased to 99,97% with the use of an absolute post-filter (HEPA FILTER) according to EN 1822 norms.

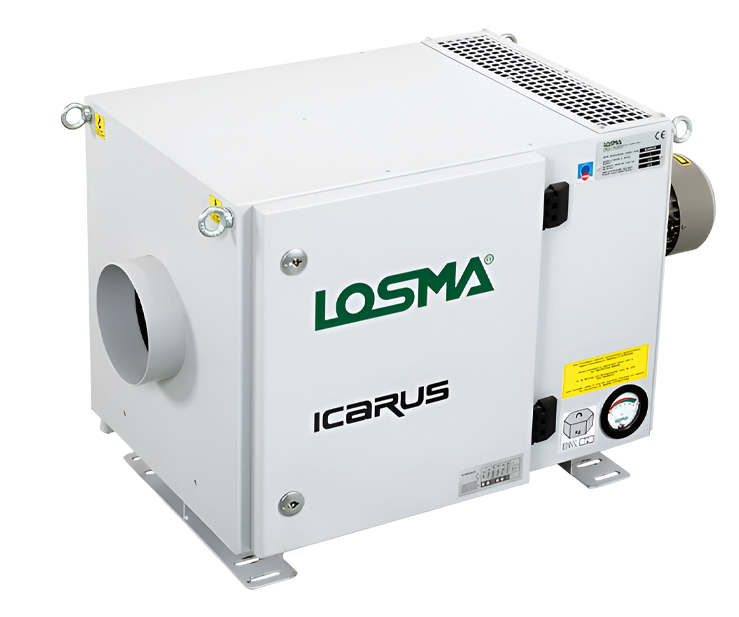

Icarus-S

Air Filters

ICARUS-S-AIR FILTRATION

ICARUS is a static extraction system for filtration of air containing oil mists, micromists and smoke, generated from coolants (both emulsion or neat oil), which can be used on most types of machine tool and for a majority of machining processes. Icarus is available in three sizes with flowrate from 600 to 2.000 m3/h with different filtration efficiency combinations, up to a performances of 99,97%.

Working principles

  • Polluted air is collected thanks to depression created by a high efficiency centrifugal fan , mounted in depression on filters. In this way the fan cannot be damaged, since it works with clean air without any pollutant residual.
  • Air passes initially through a special deflector , whose function is to distribute uniformly the air onto filter’s surface, assuring a proper use of the whole useful contact area of the filter.
  • Then the air crosses a series of filters with increasing efficiency up to more than 95% with polluted particles measuring less than a micron. Efficiency can reach 99,97% with the use of a HEPA post-filter following EN 1822 regulation.

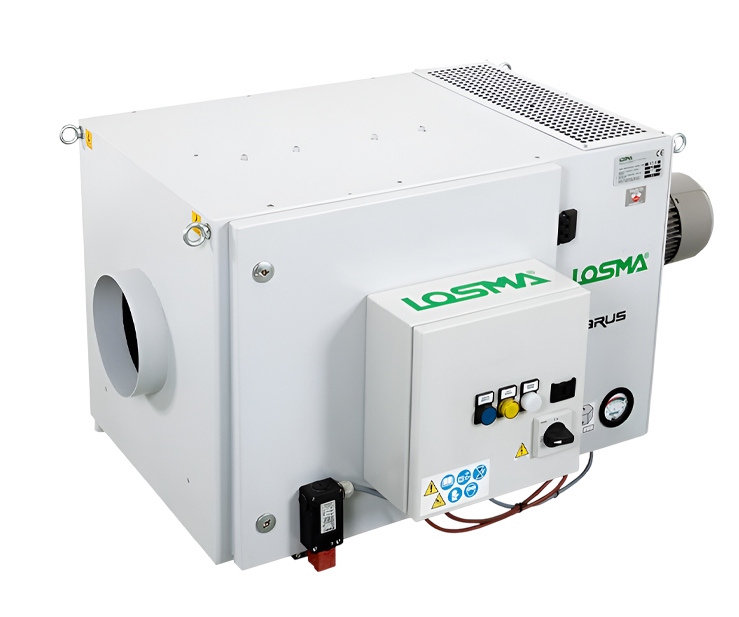

Icarus-E

Air Filters

ICARUS-E-AIR FILTRATION

ICARUS E is an electrostatic filter for the extraction of air containing oil mists, micro - mists, vapours and smoke generated by machining processes, especially those using neat oil. It is available in three sizes (S, M, L) from 600 to 1.700 m3/h with different increasing filtering efficiency combinations, up to 99,97% (with the use of HEPA H13 final filter). Standard equipment of the system is made by an electrical control box, “CE” regulation compliant, including an obstruction alarm, power alarm and micro-switch for safety.

Working principles

  • Polluted air is collected thanks to depression created by a high efficiency centrifugal fan, mounted in depression on filters. In this way the fan cannot be damaged, since it works with clean air without any pollutant residual.
  • Air passes initially through a special deflector, whose function is to distribute uniformly the air onto filter’s and cell’s surface.
  • After passing through the metallic pre-filter (restorable) air passes through the ionizing section of cells, charging electrostatically, and passing then into the collector section composed by many aluminium foils, which holds firmly also the finest particles.

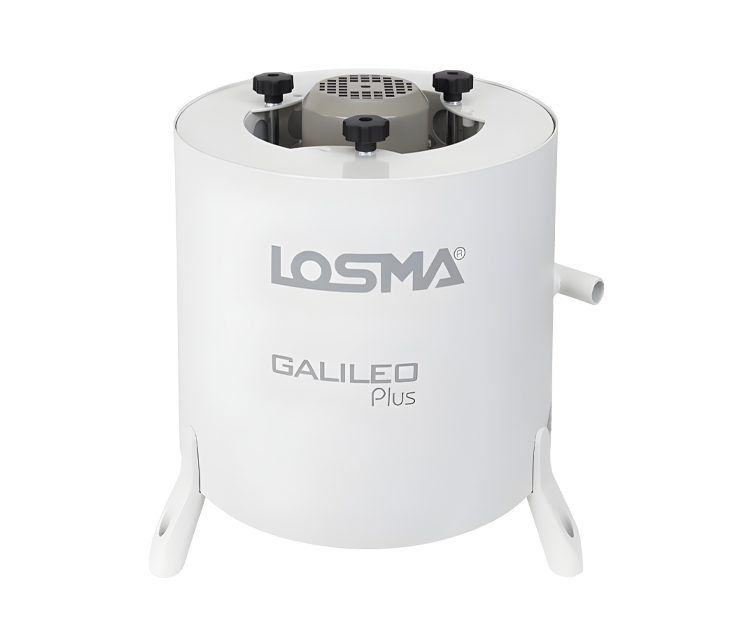

Galileo Plus

Air Filters

GALILEO PLUS-AIR FILTRATION

GALILEO PLUS is a patented centrifugal filter for mist generated from neat oil and emulsions used in machine tools, also suitable in the presence of particulate. Galileo Plus is available in 5 models with throughputs from 325 to 3.500 m3/h.

Working principles

  • Polluted air is drawn from machine tool into the lower pre-chamber of Galileo PLUS.
  • A special Multilayer filter having high filtration efficiency, stops and catches even the smallest pollutant particles, avoiding their dispersion in environment.
  • Thanks to a special drainage tube the liquid oil is sent back to the machine tool, to be re-used in working process.
  • The acceleration effect, due to the centrifugal force generated by a rotating turbine, makes the oil particles bind together and return to liquid state, using the coalescence principle.

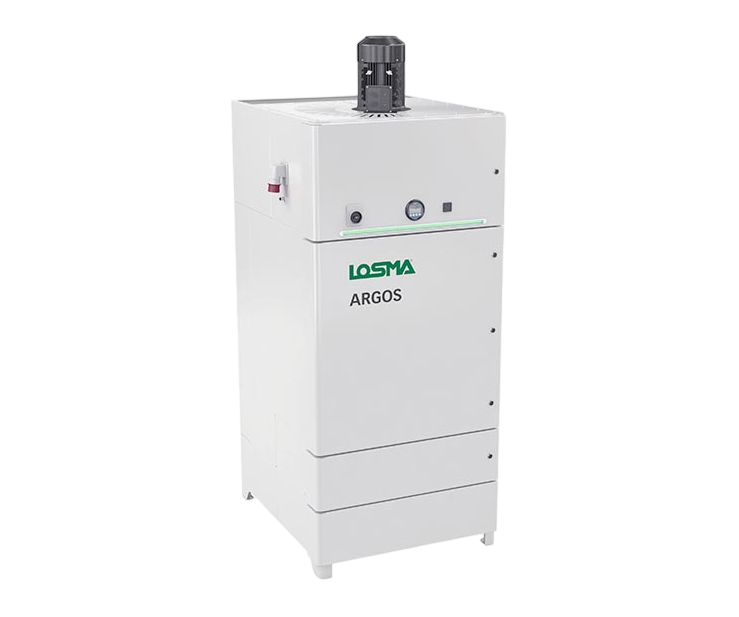

Argos

Air Filters

ARGOS-AIR FILTRATION

The new ARGOS series filters are designed for the filtration of oil mists (emulsion as well as neat oil), vapors and smokes deriving from a variety of machining processes. This filtration unit has purposely been conceived for the industrial sector, and its important features lie in its sturdiness, reliability and simplicity in conduction and maintenance. Available in 3 sizes with flow rates ranging from 3.000 to 15.000 m3/h and with increasing filtration efficiency rates to reach 99,97%.

Working principles

  • The air entry section, which connects the piping to the filter, consists in a large area which serves as a calming chamber. Inside this area a pre-blasting system “Twister” (optional) can be provided, which further facilitates the aggregation of the finer particles by means of a forced centrifugal effect.
  • Subsequently, the air passes through two separate and reusable filtration stages, a PVC drop separator and a metallic G3 filter, with an efficiency of 80-90% following UNI EN 779.
  • The next area consists of a chamber which houses the filter elements, cartridges with folds, with a high filtration surface which withholds the finer impurities. These cartridges are covered by a highly absorbent, coalescent filter which also allows for an even distribution of the air flow over the entire cartridge. This filter has a filtration efficiency of F5, namely 40-60%, while cartridges have an efficiency of F9 about 95%.
  • ARGOS is standard-equipped with a manometer to monitor the clogging of the filter elements. Upon request it can also be provided with a digital display to visualize the main functions and the exclusive system “LED Up”, which signals the clogging of the filter elements by means of three different colors. Access to the filtration chamber is possible through a hinged door, the horizontal positioning of the cartridges allows quick and easy access and maintenance. Removal of the filters is simple, fast and clean because the two chambers of filtration system are separated by a panel which also serves as a support structure for the filter elements. The recondensed oil mist particles are collected in a large tank, which includes an external visual level and (upon request) a pump to automatically remove the collected liquid.

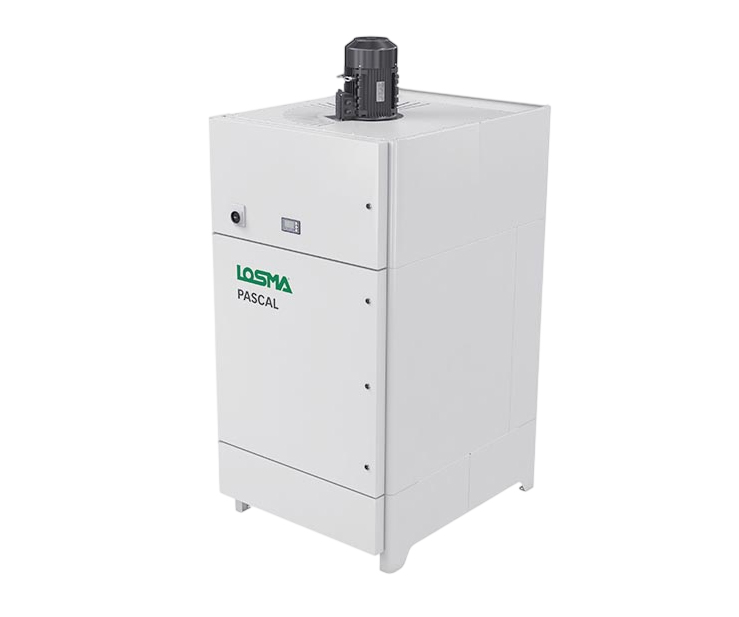

Pascal

Air Filters

PASCAL-AIR FILTRATION

The new PASCAL filter series are designed for the filtration of dust and smoke deriving from many machining processes. The filtration module has specially been conceived for the industrial sector, where its important features lie in sturdiness, reliability and easiness of conduction and maintenance. It is available in 3 sizes with flow rates ranging from 3.000 to 9.000 m3/h and with increasing filtration efficiency rates to reach 99,97%.

Working principles

  • The air entry section, which connects the piping to the filter, consists in a large section which serves as a calming chamber.
  • The following area consists of a chamber which houses the filter elements, cartridge with folds with a high filtration surface, withholding the finer impurities.
  • These cartridges are kept in perfect conditions from a programmable electronic cleaning system using compressed air for counter-washing, which monitors continuously DP and manage sequentially the opening of electro-valves and the consequent cleaning cycles conserving compressed air consumption, contained in the storage reservoir. The program controller is equipped with a visual display for the visualization of main functionalities and the alarm limit planning.
  • The horizontal positioning of cartridges allows fast and quick maintenance, access to the filtration chamber is possible through a hinged door. Filter removal is easy, quick and clean, because the dirty chamber is separated from the clean section by a panel which also serves as a support structure for the filter elements. Dust is collected in a large tank, which can easily be moved with mechanical lift.

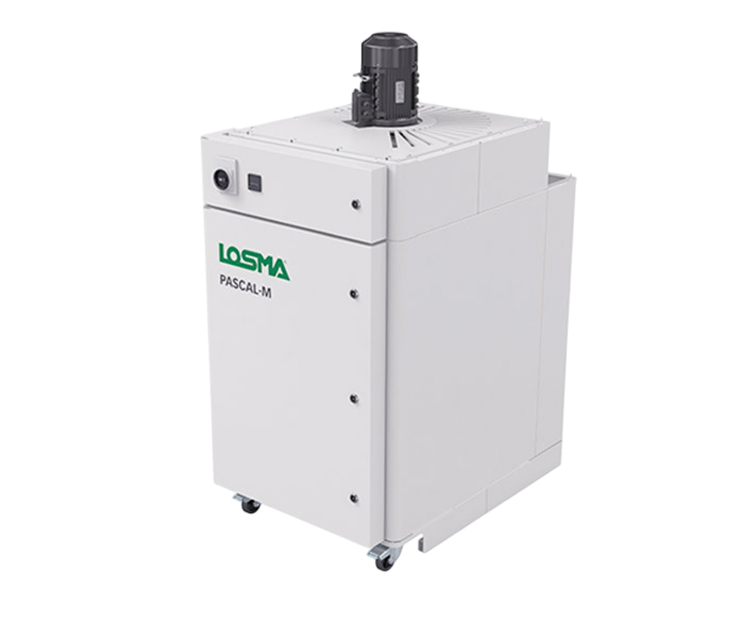

Pascal-M

Air Filters

Pascal M-AIR FILTRATION

The new PASCAL M filter series are designed for the filtration of dusts and smokes deriving from many machining processes. The filtration module has specially been conceived for the industrial sector, where its important features lie in its sturdiness, reliability and easiness of conduction and maintenance. It is available in 2 sizes with flow rates of 1.500 and 2.500 m3/h with increasing filtration rates to reach 99,97%.

Working principles

  • The air entry section, which connects the piping or the suction arm (optional), consists in a large section which serves as a calming chamber.
  • The following area consists of a chamber which houses the filter elements, cartridge with folds with a high filtration surface, which withholds the finer impurities.
  • These cartridges are kept in perfect conditions from a cleaning system (optional) using compressed air consisting in a Timer which manage the opening of the electro-valves positioned on the storage reservoir and the cleaning cycles.
  • The horizontal positioning of cartridges allows a fast access and a quick maintenance, access to the filtration chamber is possible through a hinged door. Filter removal is easy, quick and clean, because the dirty chamber is separated from the clean section by a panel which also serves as a support structure for the filter elements. Dusts are collected in a collection tank, which can easily be removed and emptied. The filtration group is equipped with a trolley in order to be moved into the workshop.
