22401 Machine for greenhouse profiles

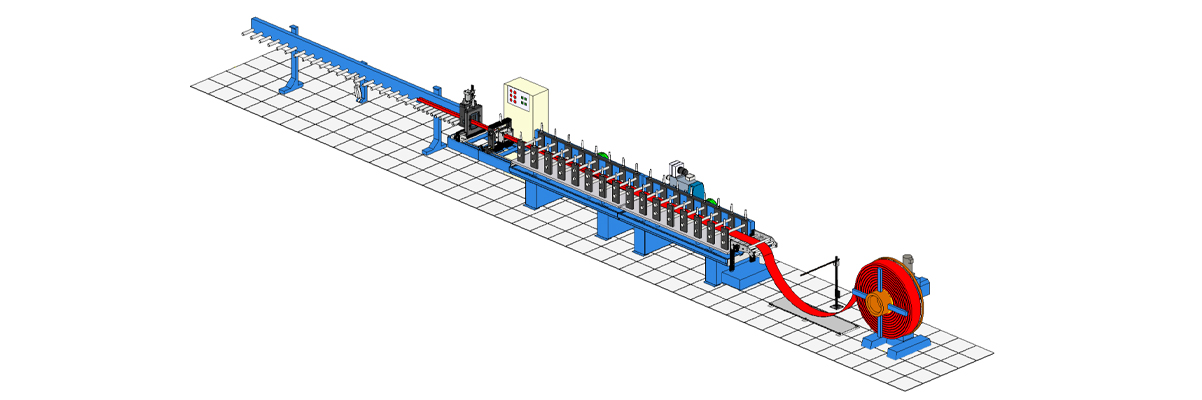

The production line for greenhouse profiles is a line which makes products complete with punching, for this specific use. The line has a trestle type decoiler 2 t, then a roll forming line PME 50/500/16 passages where the profile is formed, then the cutting press which holds the cutting and the punching dies, making the necessary holes and cutting it to the requested measure.
The following unloading bench takes out the finished products from the line.
Technical data
| Decoiler capacity: | 2 ton |
|---|---|
| Coils internal diameter: | 500 mm |
| Useful width: | 600 mm |
| Material: | galvanized |
| Thickness: | 0,9 mm |
| Line speed: | 15 m/min |
| Lengths: | 2 - 6 m |
Machine configuration
It is a motorized decoiler (or idle on request) with the capacity of 2 tons. Complete with hydraulic power pack and independent electric plant. Hydraulic unit for the spindle regulation, an electric plant for the automatic / manual mode and for the speed regulation. Complete with loop, arm for the loop control, and spokes to maintain the strip in the correct position.
Technical data
| Decoiler capacity | 2 | ton |
|---|---|---|
| Shaft diameter (min/max) | 470/530 | mm |
| Coils maximum external diameter | 1800 | mm |
| Motorized AC decoiler with inverter | 1,5 | kW |
Roll forming line of high quality, productivity and flexibility. It is characterized by the rapid change of cassettes (it is possible to change the product in a few hours) and materials and finishing rigorously controlled to guarantee for the client more production and less maintenance. It could be completed with sheet lubrication plant, strip introducer and independent regulations for each forming station.
Technical data
| Roll forming line shaft diameter | 50 | mm |
|---|---|---|
| Roll forming line useful width | 500 | mm |
| Roll forming line passages | 16 | n° |
| Thickness | 0,1 / 1,5 | mm |
It is a set of forming rolls, made of tempered and rectified steel to make the profile requested by the client. The series of rolls is characterized by high precision and durability. Their function is at the heart of the whole plant; for this reason PM follows with particular precision the whole development (the whole process of roll-making is executed internally).
It is positioned in the final part of the line and carries out the punching and cutting to lenght of the piece. The movement is through a hydraulic power pack. Includes the final cutting die made especially for the requested profile, in order to have an extremely precise cut without deformation of the product. Cutting and punching are carried out the same time with the same mechanism.
The whole electric installation is intended here. Electric cabinet, cable channels, control desk and software for the management of the line parameters, all according to the highest standards of quality and efficiency.

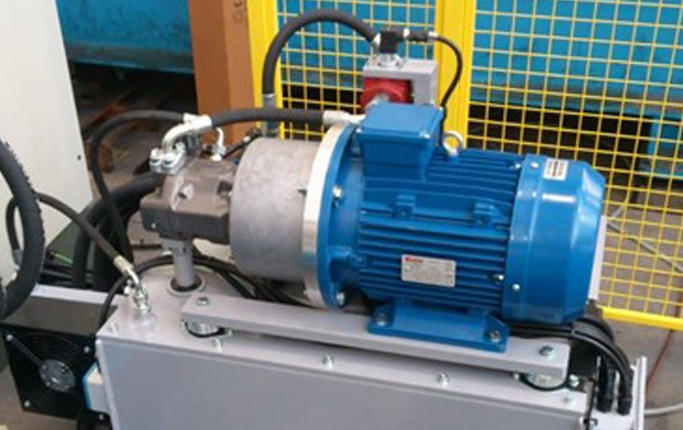

L'impianto idraulico è necessario nelle operazioni di taglio e nelle unità idrauliche di punzonatura o scantonatura. È composto dalla centralina (di potenza tale da soddisfare tutte le lavorazioni), dai collegamenti meccanici (tubature e valvole) e dal software di controllo e gestione.
Series of wire mesh, infrared photocells and sensors for the protection of the operators. They are installed on the line to avoid any accident that could cause physical damages to the operators
