54002 Decoiler - coil loading car - snubbers
Here are the general characteristics of PM standard decoilers:
Supporting base made of metal sheet and carpentry, which hold the supporting ball-bearings of the mandrel. The drum has 4 tiles installed on the connecting rod, or on an inclined surface.
Automatic opening of tiles with hydraulic cylinder on the rear side of the mandrel with shaft that passes inside the mandrel with hydraulic power pack (for those with hydraulic opening) kW 0,25 for 1-1 ton remaining kW 2,2.
Mandrel support suitably constructed for decoilers of high loading capacity.
Motorization with inverter forward/backward inside the carrying base.
Standard colour blue RAL 5015 (customisable).
Production direction reversible.
Electric controls on the machine.
Loop control (if motorized) with platform, potentiometer or photocell.
Useful width max. 1.250 mm.
Inside coil diameter 470-530 mm.
External coil diameter max. 1.800 mm.
Electric motor.
Adjustable and reversible rotation with inverter.
Hydraulic and electrical power plants.
As option it could be added:

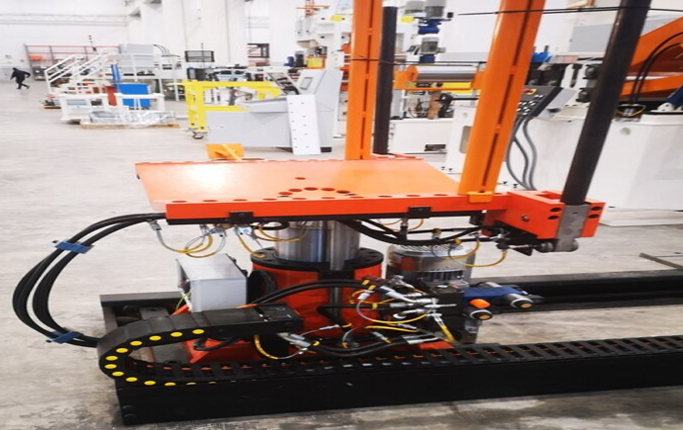

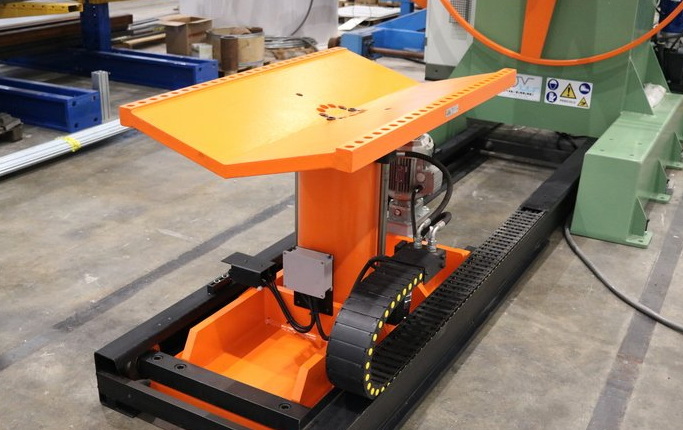

Coil loading car.
Hydraulic snubber for decoiler.
Protections with mobile cage.
Containment bars.
Photocell for loop.
Below you can find some examples of decoilers realized by PM.
Technical data
| Capacity | variable from 2 to 15 ton |
|---|
Machine configuration

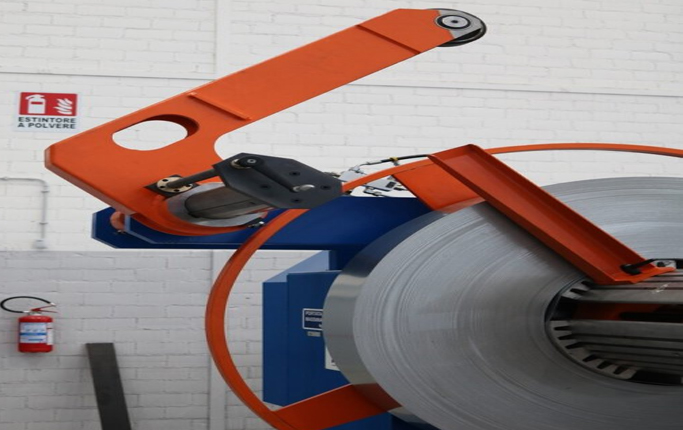

The motorised coil-pressing device is generally installed on top of the decoiler. This hydraulic unit is made up of a mobile metal arm and of a wheel (toothed or rubberized) to push the sheet. Its function is as simple as essential. Its final aim is to insert the new strip in the straightener or directly in the roll forming line and restart the new working session. The operations are managed and controlled by the operator at a distance with manual commands, therefore avoiding risks of involuntary accidents.
The motorised coil-pressing device is generally installed on top of the decoiler. This hydraulic unit is made up of a mobile metal arm and of a wheel (toothed or rubberized) to push the sheet. Its function is as simple as essential. Its final aim is to insert the new strip in the straightener or directly in the roll forming line and restart the new working session. The operations are managed and controlled by the operator at a distance with manual commands, therefore avoiding risks of involuntary accidents.

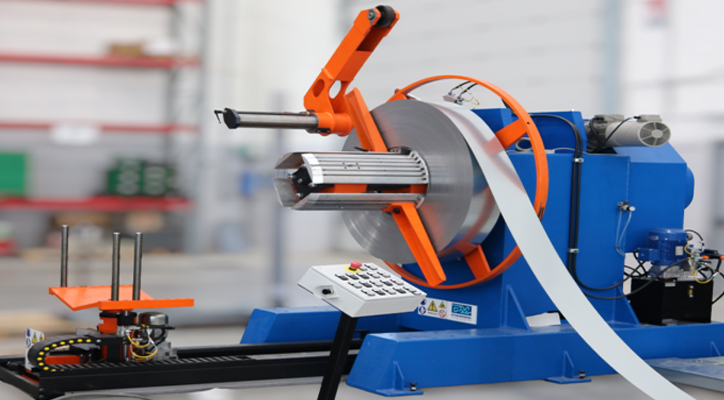

It is a motorized decoiler (or idle on request) with the capacity of 15 tons. Complete with hydraulic power pack and independent electric plant. Hydraulic unit for the spindle regulation, an electric plant for the automatic / manual mode and for the speed regulation. Complete with loop, arm for the loop control, and spokes to maintain the strip in the correct position.

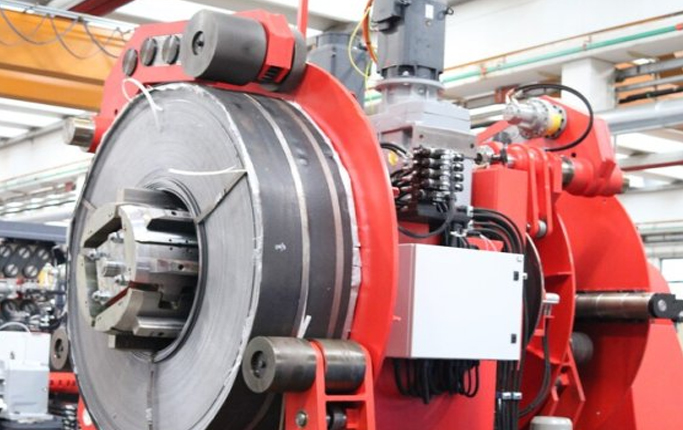

It is a double revolving motorized decoiler (or idle on request) with the capacity of 10 tons. Complete with hydraulic power pack and independent electric plant. Hydraulic unit for the spindle regulation, an electric plant for the automatic / manual mode and for the speed regulation. Complete with loop, arm for the loop control, and spokes to maintain the strip in the correct position.
It is a motorized decoiler (or idle on request) with the capacity of 15 tons. Complete with hydraulic power pack and independent electric plant. Hydraulic unit for the spindle regulation, an electric plant for the automatic / manual mode and for the speed regulation. Complete with loop, arm for the loop control, spokes to maintain the strip in the correct position and snubber.
It is a motorized decoiler (or idle on request) with the capacity of 15 tons. Complete with hydraulic power pack and independent electric plant. Hydraulic unit for the spindle regulation, an electric plant for the automatic / manual mode and for the speed regulation. Complete with loop, arm for the loop control, and spokes to maintain the strip in the correct position.
