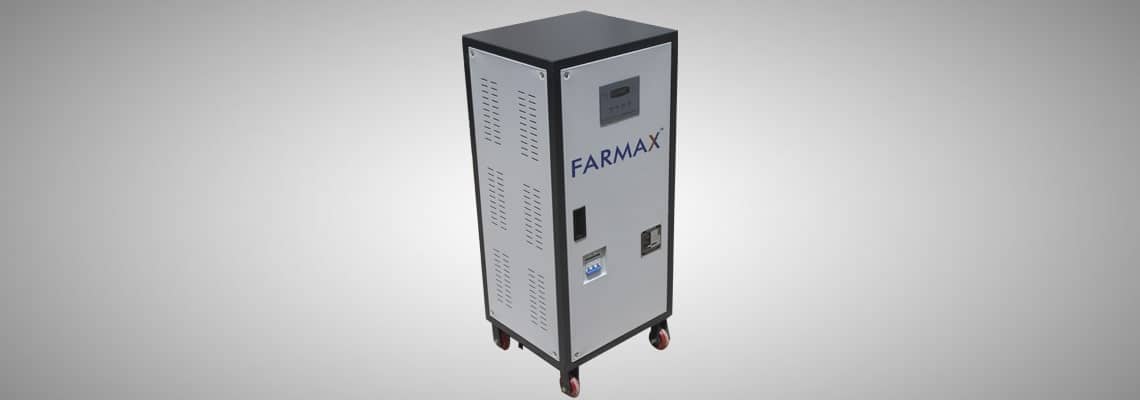

Air Cooled Servo Volatge Stabilizer

The FARMAX Servo Controlled Voltage Stabilizer offers a complete solution to tackle a wide range of input voltage. The stabilizers are rugged and proven over 16 years. The Air cooled stabilizer is available in a range from 6KVA-200KVA.

FARMAX Servo Stabilizer undergo regular quality checks, including sub-assembly, baking, accelerated life test, etc. It is most suited for balanced and unbalanced loads requiring high voltage regulation.

FARMAX SCVS is suitable for CNC Machines, Printing machines, Medical equipments, Textile & Spinning mills, Cold Storage units, Food processing equipment, CT Scan, MRI machines, Retail outlets, Telecom, Restaurants and Office applications.

We are the most well-known company for Air Cooled Servo Voltage Stabilizer Manufacturers in Bangalore.

Contact for detailed technical brochure

Key Features

Micro controlled based circuitry
All parameters can be modified using the keypad on the front panel
Fast correction rate
Total protections and control
No potentiometer adjustments
Set output voltage
Set output voltage sensitivity
Rugged AC synchronous motors
Output over / under voltage cut-off
Input over voltage / under voltage cut-off
Over load cut-off
Trip time delay adjustments with variable setting
Manual and auto start facility
Common control card - any capacity
Output start and stop facility

TECHNICAL SPECIFICATIONS

CAPACITY		6KVA to 200KVA
Input Voltage Range	Standard	340V to 460V
	Narrow range	360V to 460V
	Wide range	300V to 460 V
Specification	Output Voltage	415 Volts ± 1%, line to line Nominal
	Rate of Correction	70V / Sec line to line
	Response Time	10 m sec.
	Efficiency	98 %
	Waveform distortion	Nil
	Effect of power factor	Nil
	Line Frequency	47 to 53 HZ
	Control Type	Digital Micro controller base
	Operating temperature	0° C - 45° C Ambient
	Nature of cooling	Air cooled/ Forced air cooled
Protections		Electronic over voltage trip Electronic under voltage trip Overload and short circuit protection Single phasing prevention & cut off Phase reversal protection & cut off
Metering LCD type		Input voltage P-N Output voltage P-P Load current in all phases Frequency
