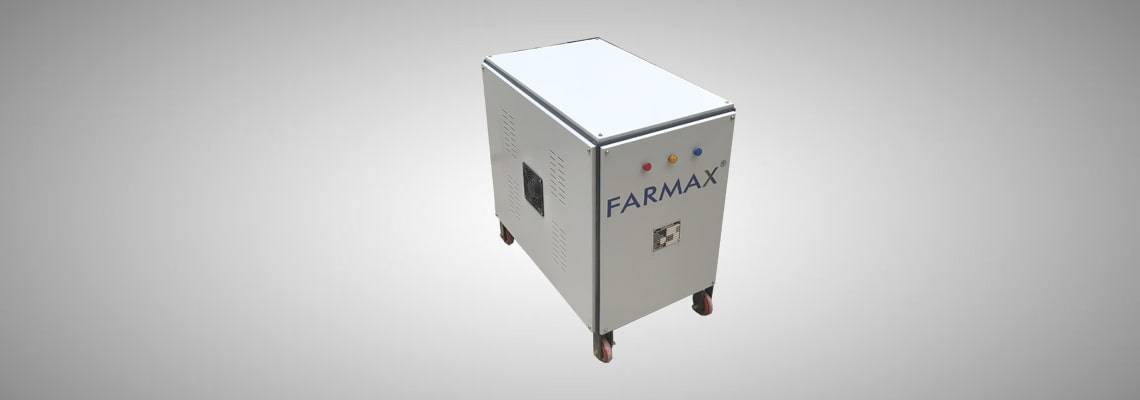

Isolation Transformer

Isolation Transformer

FARMAX Isolation transformer ensures complete isolation from the mains AC line, thereby reducing line transients and spikes. It also removes EMI / RFI noise. Two symmetrical windings with electrostatic shield safeguards critical loads normally used in IT / Telecom, Medical Systems, Engineering sectors, etc.

We at FARMAX are the most preferred entity for Isolation Transformer Manufacturers in Bangalore. We bring out innovative and quality products upgraded with the latest technology to cater to the needs and expectations of customers.

Contact for detailed technical brochure

Features

  • Protection from Noise
  • Neutral Isolation
  • High attenuation level
  • Low coupling capacitance
  • High Induction

TECHNICAL SPECIFICATIONS

Rating 10KVA to 500KVA
Type of Transformer Floor mounted, Natural air-cooled / Forced air cooled
Configuration Delta / star 1:1 OR 2:1 (or as per user requirement specification)
Default Vector Group Dyn11
Type of lamination CRNO
Impedance phase 3-4%
Primary Voltage 415 V 3Phase
Secondary voltage 415/220V 3 Phase
Neutral conductor rating 200%
Frequency 50/60 Hz
Winding Copper Wire / Strip or Aluminium wire / strip
Load Regulation Better than 3.5%
Class of insulation Class F
Ambient temperature 0 to 45°C
Power factor 0.75 lead to lag
Insulation Strength Withstands 2.5 KV for 1 minute (between windings & body)
Indications LED Lamps
Enclosure M.S. Enclosure provided with Input / Output terminations
Construction standards As per IS 2026 Part I & II
