FARMAX ONLINE UPS

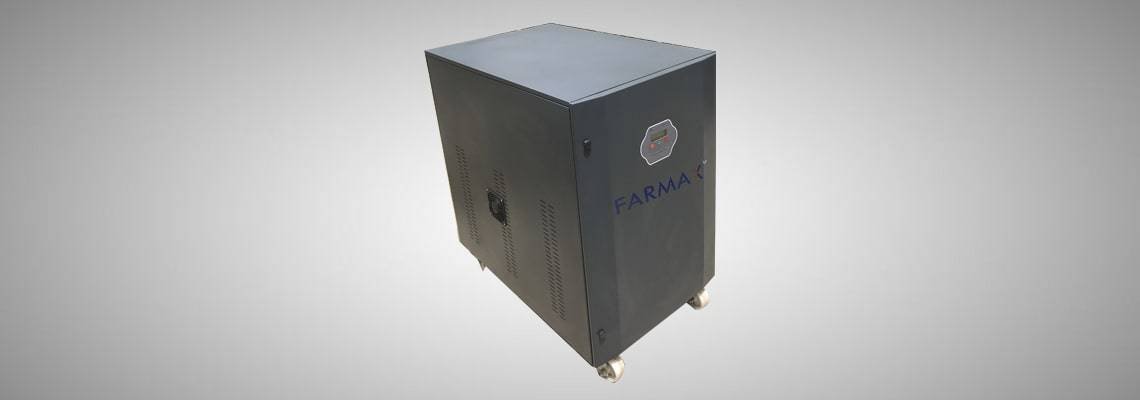

FARMAX ONLINE UPS (3:3)
FARMAX online ups are compact and efficient new generation on-line double conversion UPS to meet the power supply needs of critical applications. The systems are designed to withstand harsh Indian power & environmental conditions.
The double conversion circuitry detects the current and voltage output of the utility power supply. It also attains high input power factor over 95%.
With the use of outstanding IGBT as the power conversation component, the operating frequency of the inverter can reach tens of KHz. Moreover, the higher working efficiency of the inverter also improves the overall efficiency of the UPS and higher inversion frequency reduces the noise of the inverter as well.
The FARMAX Online ups range starts from 5KVA to 200KVA 3/3 & 3/1 ratings.
FARMAX - One of the leading company for Online UPS system manufacturers in Bangalore.
Contact for detailed technical brochureFeatures
- Galvanic isolation transformer: protects your load from input surge, spike, and fluctuations
- Isolates load from power problems
- Active power factor correction (PFC) system saves up to 25% in electricity bills
- High quality components
- Lasts long with minimal maintenance
- Double conversion technology
- LCD Display with all parameters
- IGBT Based Technology for more efficiency
- With all protections
Applications
- A.C Motors
- CNC machines
- Boilers
- Deep Freezer
- Compressors
- Industrial Heavy Light
- Computer systems: servers & workstations
- Telecommunication, Networking & Broadcasting equipment
- Entertainment, surveillance & security systems
- Aerospace, Defence, Medical, Printing, & Research equipment
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Type | Online |
| Capacity | 5KVA - 200KVA 3 in 3 out |
| Waveform | Pure Sine Wave |
| Technology | IGBT - PWM / THYRISTOR |
| Switching Frequency | Above 15 KHz |
| By Pass Facility | Manual/Static bypass - optional |
| Enclosure Type | IP 20 |
| Isolation | Inbuilt Galvanic Isolation Transformer |
| Input | |
| Voltage | 400VAC ± 0% |
| Frequency | 50Hz ± 5Hz |
| Input PF | >0.88 |
| Protection | Short Ckt |
| Output | |
| Voltage | 400VAC ± 2% |
| Frequency | 50Hz ± 1Hz |
| Output PF | 0.8 lag to unity PF |
| Over Load Capacity | 150% for 1 Minute, 125% for 10 Minutes |
| Inverter Efficiency | 96% |
| Overall Efficiency | 82% |
| Crest Factor | 1.3 |
| Total Harmonic Distortion | Liner load <_2.5% & Non-Liner load <_5% |
| Indication | |
| Visual | Mains, Charger, Inverter, Battery & Error information status |
| Audible | Changeover, Overload, Battery low & other error Alerts |
| Protection | |
| Charger | Voltage & Current Limiter, Phase Sequence & Failure Protector & Fuse/Circuit Breaker with IGBT/SCR Rectifier |
| Inverter | Over Voltage, Under Voltage, Over load cut-off & Short Circuit Protection |
| Battery | Battery Deep Discharge, Overcharge Cut-off & HRC Fuse/Circuit Breaker |
| Battery | |
| Type | External Tubular / Valve Regulated Lead-Acid |
| Nominal Voltage VDC | 120, 192, 240, 360 & 384 |
| Recharge Time | 8-12 Hours |
| Environment | |
| Altitude | 0-2000m |
| Humidity | 95% Non Condensing |
| Acoustic Noise Level | <60dB |
| Ambient Temperature | 0-40 deg C |

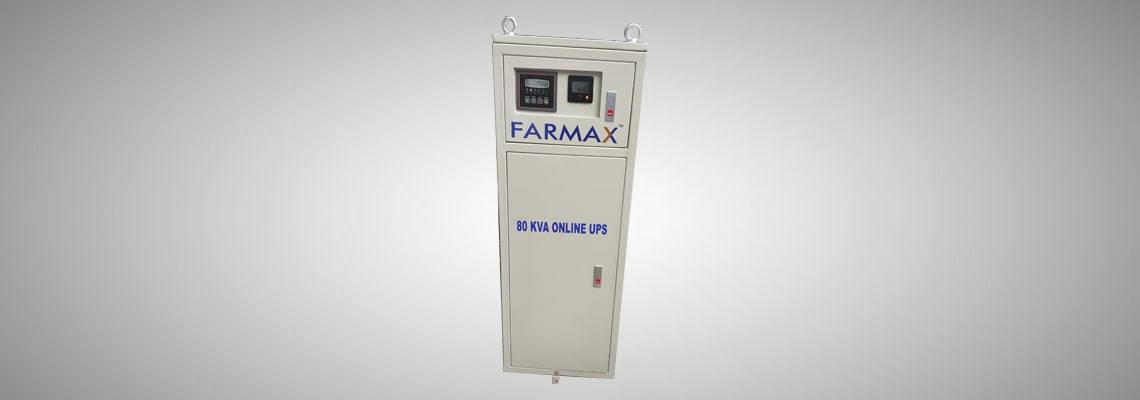

FARMAX ONLINE UPS (1:1) & (3/1)
FARMAX Online UPS systems are designed, for the data security and business continuity of today's networked and cloud environment. Its unique modular design and compact footprint comes with a variety of special features which are uncommon in this category of UPS Systems.
Contact for detailed technical brochureFeatures
- Flexible Battery Configuration - 4 to 32 batteries Extends battery life
- Output PF @0.9 More load possible on the same rating
- Extra Wide Input Voltage Range 1/1 Models: 110 - 290V (with 110-190V on derated mode) reduces battery mode and increases battery life
- High Efficiency ~95% on Mains Mode and ~98% on Eco Mode
- Service support 24 X 7
TECHNICAL SPECIFICATIONS
| Parameter | Specification |
|---|---|
| Type | Online |
| Capacity | 5 - 10VA 1 in 1out 5 - 40KVA 3 in 1 out |
| Waveform | Pure Sine Wave |
| Technology | IGBT - PWM |
| Cooling System | Forced Air |
| Input | |
| Voltage | 230VAC ± 10% 1Ph./400VAC ± 10% 3Ph |
| Frequency | 50Hz ± 5Hz |
| Input PF | >0.88 |
| Protection | Short Ckt |
| Output | |
| Voltage | 230VAC ± 2% |
| Frequency | 50Hz ± 1Hz |
| Output PF | 0.8 lag to unity PF |
| Over Load Capacity | 150% for 1 Minute, 125% for 10 Minutes |
| Inverter Efficiency | 96% |
| Overall Efficiency | 82% |
| Crest Factor | 1:3 |
| Total Harmonic Distortion | Liner load <_2.5% & Non-Liner load <_5% |
| Indication | |
| Visual | Mains, Charger, Inverter, Battery & Error information status |
| Audible | Changeover, Overload, Battery low & other error Alerts |
| Protection | |
| Charger | Voltage & Current Limiter, Phase Sequence & Failure Protector & Fuse/Circuit Breaker with IGBT/SCR Rectifier |
| Inverter | Over Voltage, Under Voltage, Over load cut-off & Short Circuit Protection |
| Battery | Battery Deep Discharge, Overcharge Cut-off & HRC Fuse/Circuit Breaker |
| Battery | |
| Type | External Tubular /Valve Regulated Lead-Acid |
| Nominal Voltage VDC | 120, 192, 240, 360 & 384 |
| Recharge Time | 8-12 Hours |
| Environment | |
| Altitude | 0-2000m |
| Humidity | 95% Non Condensing |
| Acoustic Noise Level | <60dB |
| Ambient Temperature | 0-40 deg C |
