Description

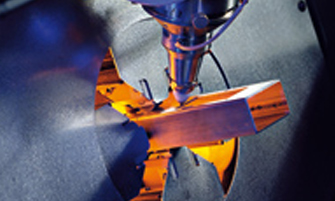

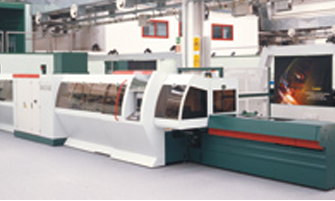

The LT823D Laser Tube Cutting System combines both straight and bevelled edges - non orthogonal operations - (programmable tilting head up to 45°) with unparalleled speed and efficiency.
This fully programmable function, is particularly suitable when cut components have to be perfectly joined or when assembly operations include brazing, or other systems of welding without defacing the material. The LT823D Laser Tube Cutting System offers the highest productivity available on the market with a with a unique level of flexibility and automatic adjustments. With capacities up to 152mm diameter and maximum lengths up to either 6500mm or 8500mm, (on demand) the LT823D laser cutting system has the following special features:

• Fully CNC programmable adjustments
• Changeovers in less than 3 minutes
• Technological database for tubular components based on thousands of on filed applications
• Fast programming: from design to finished part in few minutes with unskilled operators
• Fully automatic bar handling from bundle including measuring, feeding, cutting and unloading Minimum bar waste.

Standard Artube CAD-CAM software control packages specifically designed by ADIGE for single and assembled tube programming allow extremely high exploitation of the system. The non orthogonal cutting process is also automatically programmed.

Solutions

Available as part of the system :

• Weld seam detector
• Control device for enhanced piercing
• Unloading system lengths of 3500-4500-6500mm
• Separation and collection of different lengths

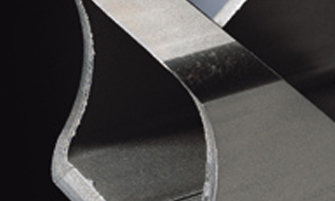

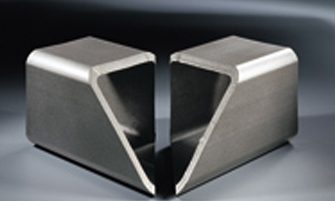

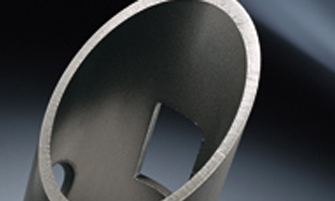

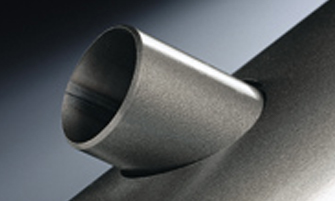

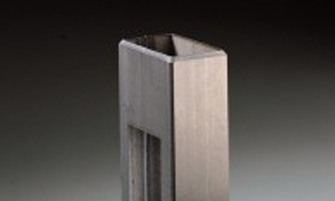

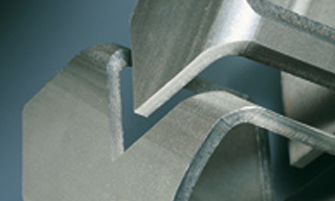

Applications
